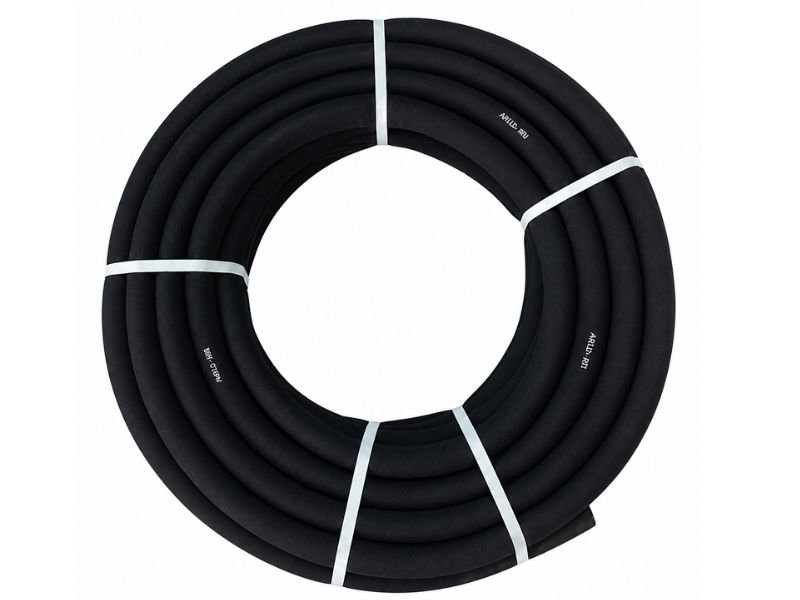

Airshaft Rubber Round Hose

Q: How do I measure or specify an Airshaft tube for a order?

Please provide the following metrics for an exact match:Inner Diameter (ID) and Outer Diameter (OD) when uninflated.Wall Thickness (typically ranging from 3 mm to 7.5 mm).Overall Profile (e.g., flat rubber tubes for multi-tube shafts vs. perfectly round bladders)

Welcome To Krishna Rubber Industries

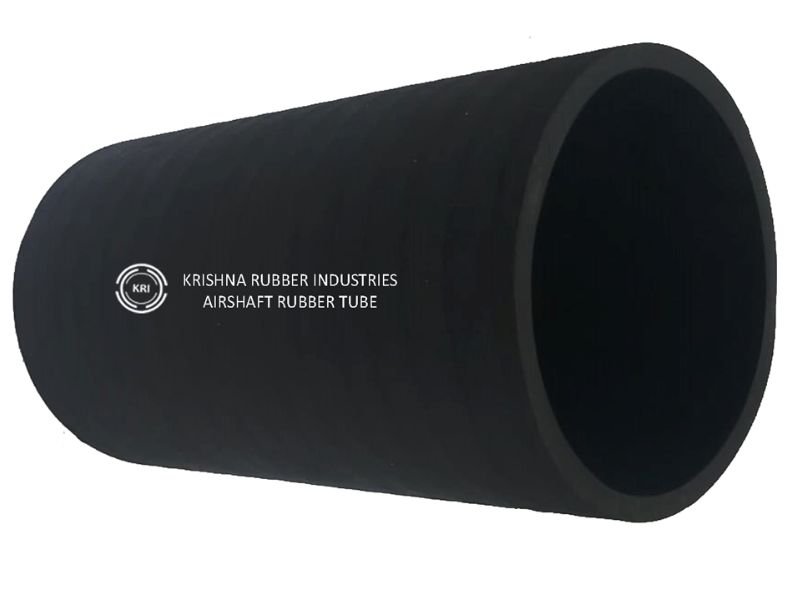

An Airshaft Rubber Tube (also called an Inflatable bladder, Air bladder, or Expansion tube) is the core rubber component installed inside an air expansion shaft.

When compressed air is supplied through the air valve, the tube inflates and pushes the keys/lugs outward, gripping the paper core securely.

Function

Inflates when air is supplied.

Expands the keys or leaves on the shaft.

Holds paper, film, foil, textile, or laminate rolls.

Deflates when air is released for easy roll removal.

Properties

Material : Synthetic Rubber

Color : Black

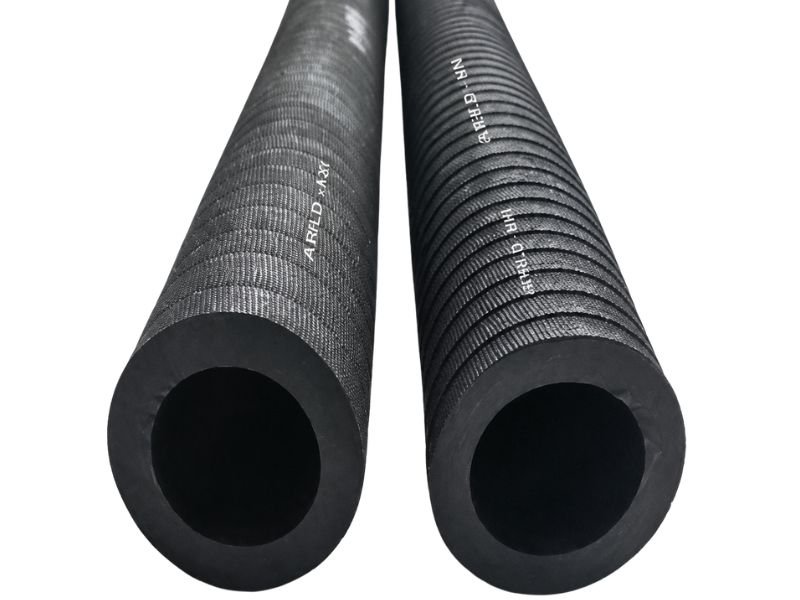

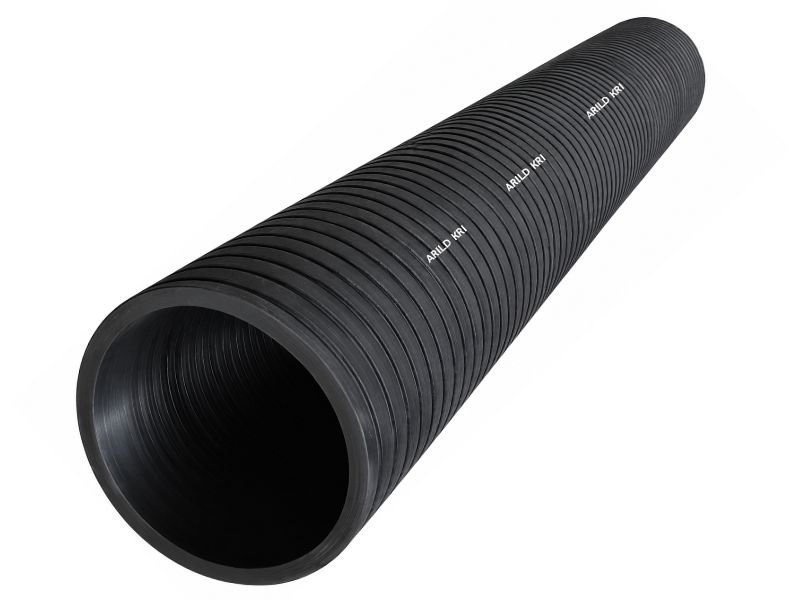

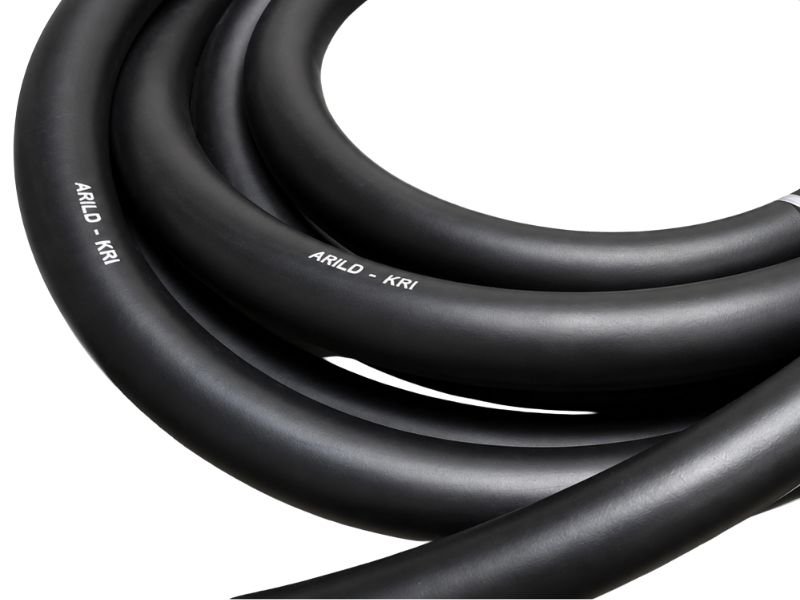

Surface : Wrapped Design/ Smooth Surface

Hardness : -60 C To 65 C

Tensile Strength : 100kg/cm2

Elongation At Brack : 300%

Working Temperature : -20 C To 180 C

Key Features

Excellent Wear Resistance

High Elasticity & Expansion Performance

Up to 2 Years Shelf life

Custom Sizes Available

Download Catalogue

Available

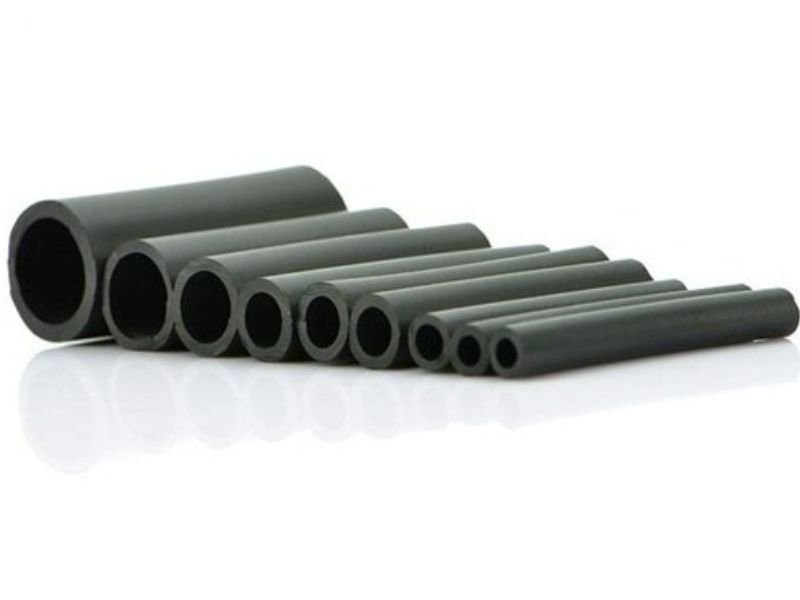

Available Standard Sizes

ID 4 mm × OD 8 mm

ID 10 mm × OD 16 mm

ID 16 mm × OD 26 mm

ID 25 mm × OD 35 mm

ID 34 mm × OD 44 mm

ID 82 mm × OD 92 mm

ID 130 mm × OD 145 mm

ID 5 mm × OD 10 mm

ID 12 mm × OD 18 mm

ID 18 mm × OD 28 mm

ID 28 mm × OD 38 mm

ID 40 mm × OD 50 mm

ID 90 mm × OD 105 mm

ID 140 mm × OD 155 mm

ID 6 mm × OD 12 mm

ID 14 mm × OD 20 mm

ID 20 mm × OD 30 mm

ID 30 mm × OD 40 mm

ID 50 mm × OD 60 mm

ID 95 mm × OD 107 mm

ID 150 mm × OD 165 mm

ID 8 mm × OD 12 mm

ID 15 mm × OD 25 mm

ID 22 mm × OD 32 mm

ID 32 mm × OD 42 mm

ID 55 mm × OD 65 mm

ID 100 mm × OD 110 mm

ID 190 mm × OD 200 mm
